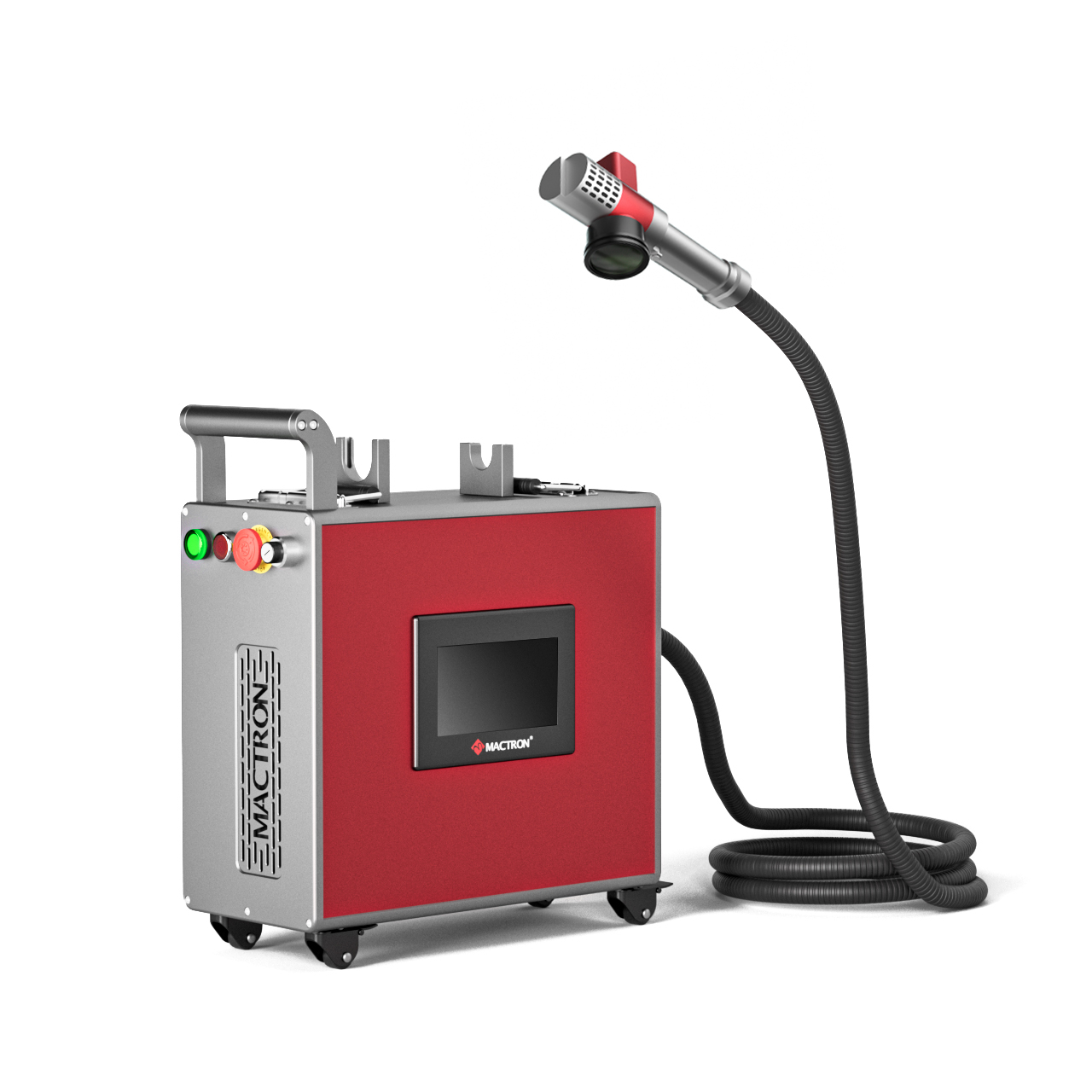

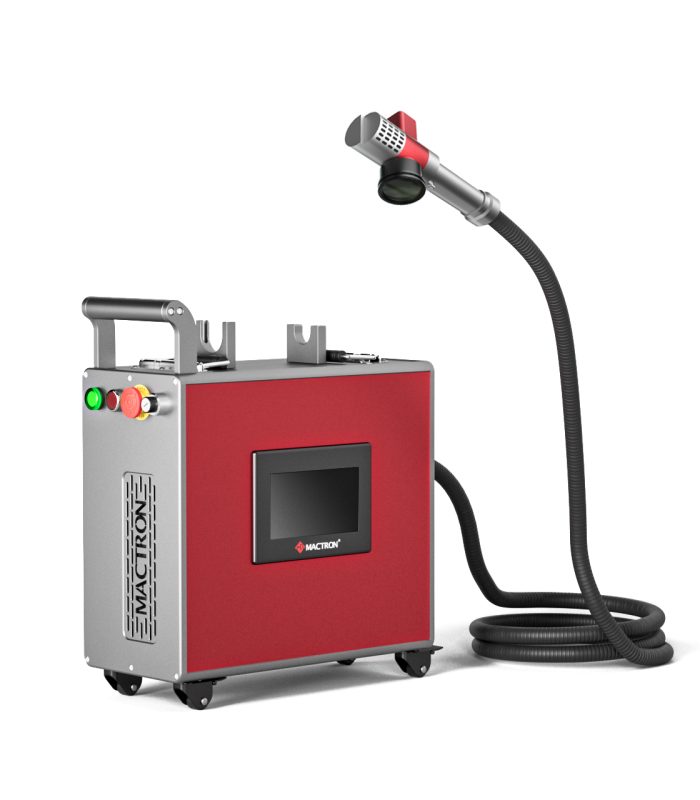

Portable Pulsed Fiber Laser Cleaning Machine

Portable Pulsed Fiber Laser Cleaning Machine

$7,200.00/set

Laser cleaning machine is suitable for metal mold rust removal, paint peeling or removal of wrapper, pretreatment of parts before coating, as well as cleaning of aviation parts, restoration and protection of historical relics, etc.

Laser Power

Product price: $7,200.00/set
Order total:
SKU: MT-CL-P Category: Tag:

Description

Portable pulsed fiber laser cleaning machine has advanced technology, humanized design, small size, flexible operation, low energy consumption, environmental protection and other characteristics, with a certain degree of practicality and operability. The customer can preset the cleaning mode through the software, and can directly switch the mode for operation without adjusting the parameters, and start the cleaning without chemical reagent, medium, dust and water. Through auto focusing , surface fitting cleaning , removing resin, stain, rust, coating, paint, etc, the cleanliness is high.





Typical Applications:

1. Metal Rust Removal
2. Paint Removal & De-Coating
3. Mold Cleaning & De-Oiling
4. Aerospace, HSR & Shipbuilding Parts Cleaning
5. Restoration and Protection of Historical Relics
6. Pre-Treatment for Weld Surface & Coating

Feature of portable fiber laser cleaning machine:

1. Non-contact cleaning, does not damage the part substrate.
2. Precise cleaning, can achieve precise location, the exact size of the selective cleaning.
3. Laser cleaning without any chemical cleaning fluid, no supplies, safety and environmental protection.
4. Simple operation, power can be hand-held or with the robot to achieve automated cleaning.
5. Cleaning efficiency is very high, save time.
6. Laser rust removal machine is stable, almost no maintenance.

Our professional service：
One-to-one service, quickly response, provide operation videos, English manuals, process parameters and other technical information. Two-year warranty.

Express services(optional):
Shipping by DHL/TNT/FEDEX about 7 to 15 days. You can contact us to negotiate shipping details.

Model MT-CL30P MT-CL60P MT-CL100P
Laser type Nano. pulsed fiber laser
Wavelength 1064nm(Spectral width @3dB<15)
Laser Power 30W 60W 100W
Pulse energy 0.8mJ 1.5mJ
Frequency Range 1-3000KHz
Pulse Width 2-500ns
Beam Quality <1.4m² (2170 in²) <1.5m² (2325 in²) <2m² (3100 in²)
Head Weight <0.8Kg(1.76lbs)(No QBH/QCS)
Cleaning Width Single wobble：0~120mm(0-4.72in)（Adjustable）
Double wobble：>100mm (3.94in)(Six modes）
Scanning Speed <20m/s(787.40 in/s)
Wire Length ≤2m (78.74 in) ≤3m (118.11 in) ≤5m (196.85 in)
Cooling Air cooling
Voltage AC 110/220V,50/60Hz,10A
Dimension 600mm (23.62 in)×250mm (9.84 in)×500mm (19.69 in)
Weight 22Kg (48.50 lbs) 25Kg (55.12 lbs) 29Kg (63.93 lbs)

Laser cleaning has a wide range of applications and strong pertinence. It is suitable for metal mold rust removal, paint peeling or removal of wrapper, pretreatment of parts before coating, as well as cleaning of aviation parts, restoration and protection of historical relics, etc. It can play an important role in automobile manufacturing, semiconductor chip manufacturing, precision parts manufacturing, military equipment, aerospace, building exterior walls, cultural relics protection, circuit boards and other fields.

Icon
Brochure MT-CL Series
1 file(s) 0.00 KB
Download
